Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications.

FEATURES

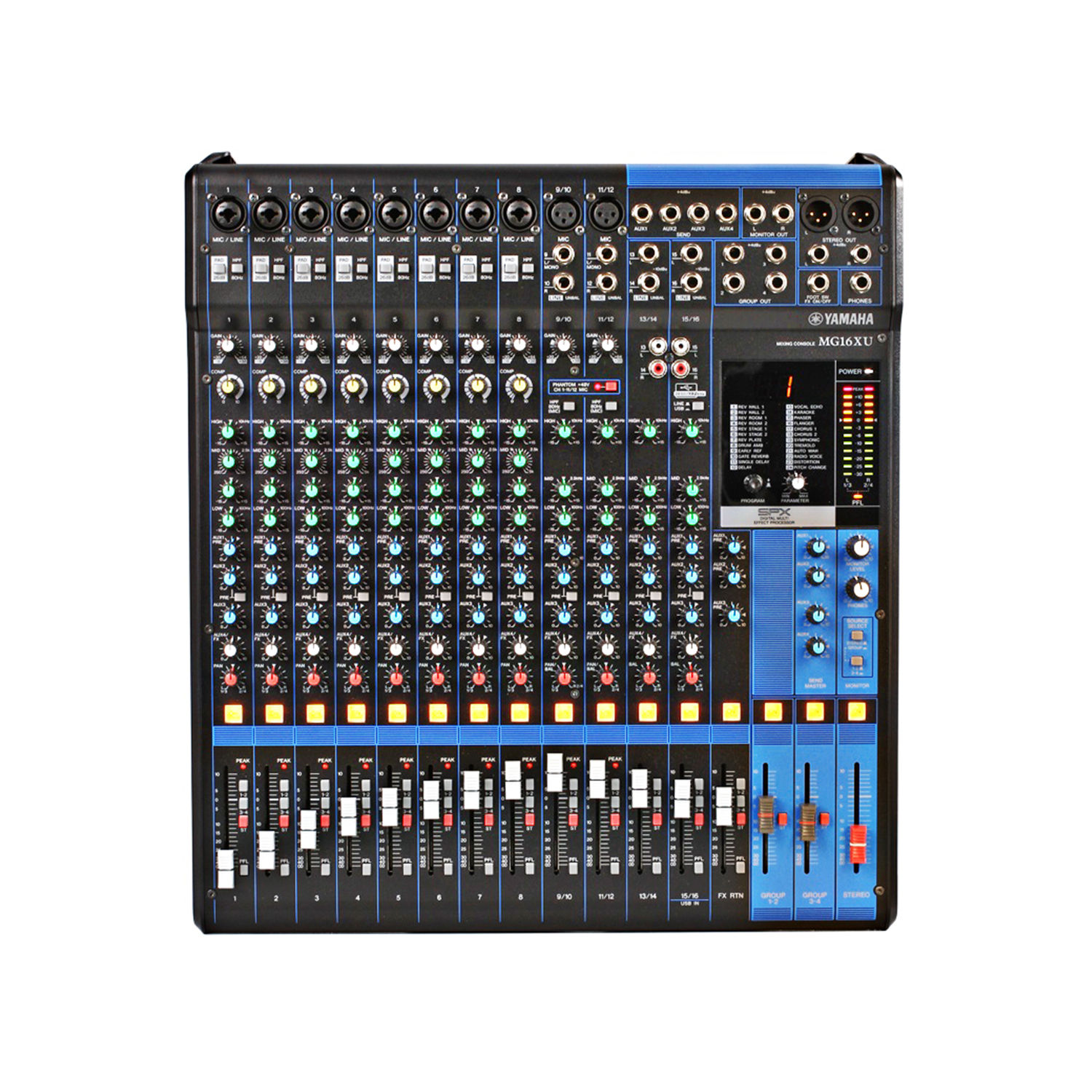

16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

SPECS

• 16-Channel Mixing Console

• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)

• 4 GROUP Buses + 1 Stereo Bus

• 4 AUX (incl. FX)

• “D-PRE” mic preamps with an inverted Darlington circuit

• HPF@80 Hz, 12 dB/oct (Mono/Stereo: MIC only)

• 1-Knob compressors (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec.

• High-grade effects: SPX with 24 programs

• Level Meter : 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB].

• 24-bit/192kHz 2in/2out USB Audio functions

• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter

• Includes Cubase Al DAW software download version

• PAD switch on mono inputs (26 dB (Mono))

• +48V phantom power

• XLR balanced outputs

• Internal universal power supply for world-wide use

• Power Requirements : AC 100 – 240 V, 50 / 60 Hz

• Power Consuption : 30W

• Rack Mount Kit Included

• Metal chassis

• Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")

• Net Weight: 6.8 kg (15.0 lbs.)
